AHA-2-12-12

Aluminum Adjustable Height Gantry Crane with Glass Filled Nylon Casters 12 Ft. Wide x 12 Ft. Max Usable Height 2,000 Lb. Capacity Silver

The adjustable height Aluminum Gantry crane combines lightweight and rigid, sturdy construction into one unit. The all aluminum construction of this gantry crane makes it corrosion resistant and perfect for outdoor use. The lightweight I-beam allows for simple height adjustments. All pinned connections make it possible for single person set up and take down in just minutes. Included are two (2) straps, allowing one person to transport the gantry crane in one neat package.
Available QuickShip
Key Features
  • Heavy-duty welded aluminum construction for long lasting use
  • Each unit includes four swivel glass filled nylon casters with four-way position locks for safe positioning
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • All units comply with applicable CMAA and ANSI specifications
Product Image

Visual Reference

AHA-2-12-12
AHA-2-12-12
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

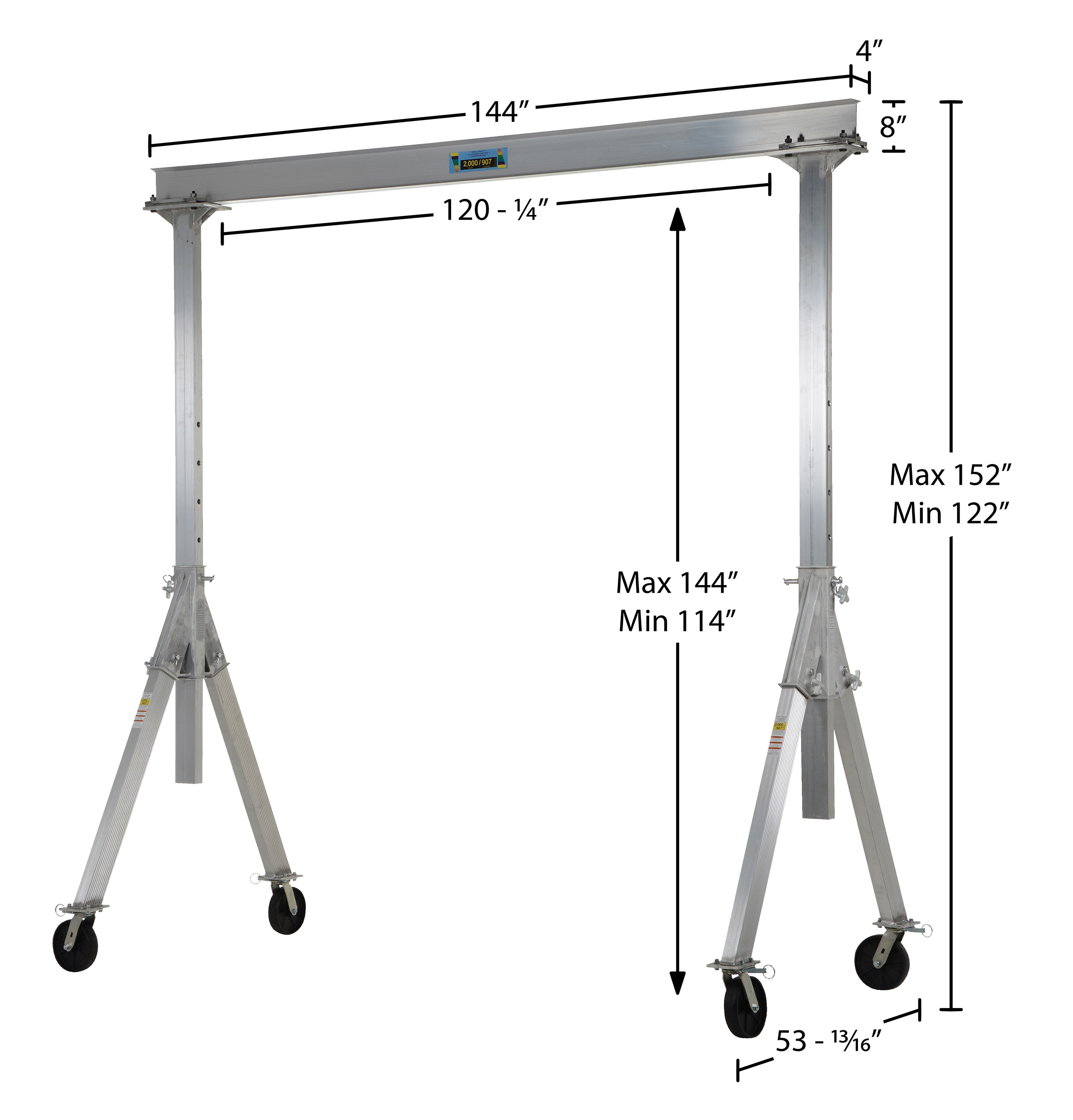

Assembled Weight 238 lbs
Assembled Size 53.8125"W x 144"L x 152"H
Total Ship Weight 286 lbs
Package 1 Size 29"W x 144"D x 20"H
Color / Finish Silver
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 2,000
Overall I-Beam Length (ft.) 12
I-Beam Height (In.) 8
I-Beam Flange Width (in.) 4
Under I-Beam Range (in.) 114 to 144
Base Width (in.) 53-13/16
Caster Quantity/Diameter/Width (in.) (4) 8 x 2
Caster Type Swivel (4) Position Locking Casters
Caster Material Glass-Filled Nylon
Caster Top Plate (in.) 4 x 4 1/2
Usable Trolley Travel Distance (in.) 120-1/4
Increment Height Adjustment (in.) 6
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Aluminum Jib Crane Manual   Come-Along kit for height adjustment   1 Year Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: AHA-2-12-12

AHA-2-12-12

Aluminum Adjustable Height Gantry Crane with Glass Filled Nylon Casters 12 Ft. Wide x 12 Ft. Max Usable Height 2,000 Lb. Capacity Silver

The adjustable height Aluminum Gantry crane combines lightweight and rigid, sturdy construction into one unit. The all aluminum construction of this gantry crane makes it corrosion resistant and perfect for outdoor use. The lightweight I-beam allows for simple height adjustments. All pinned connections make it possible for single person set up and take down in just minutes. Included are two (2) straps, allowing one person to transport the gantry crane in one neat package.

  • Heavy-duty welded aluminum construction for long lasting use
  • Each unit includes four swivel glass filled nylon casters with four-way position locks for safe positioning
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • All units comply with applicable CMAA and ANSI specifications

Core Data

Assembled Weight: 238 Assembled Size: 53.8125"W x 144"L x 152"H Color: Silver
Total Ship Weight: 286 Package 1 Size: 29"W x 144"D x 20"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 2,000
Overall I-Beam Length (ft.): 12
I-Beam Height (In.): 8
I-Beam Flange Width (in.): 4
Under I-Beam Range (in.): 114 to 144
Base Width (in.): 53-13/16
Caster Quantity/Diameter/Width (in.): (4) 8 x 2
Caster Type: Swivel (4) Position Locking Casters
Caster Material: Glass-Filled Nylon
Caster Top Plate (in.): 4 x 4 1/2
Usable Trolley Travel Distance (in.): 120-1/4
Increment Height Adjustment (in.): 6
